Sovol SV06 ACE 3D Printer
- Klipper: I3 3D Printer – Max Speed 600mm/s
- Full-Auto Leveling - Say Goodbye to A4 Paper
- Real-time Monitoring and Control, Supports Timelapse
- Print Size: 220×220×250mm
- OTA Updates with One Click
Video
Enhanced Stability and Structure
Compared to the SV06, the new SV06 ACE features a significantly upgraded frame. The Z-axis guide rods have been increased from 8mm to 10mm, enhancing the overall structural stability. This improvement not only ensures a more robust build but also results in even more precise and flawless prints.
Enhanced X and Y Axis
SV06 ACE features an upgraded X and Y axis assembly, transitioning from rods and linear bearings to a dual-axis profile with metal bearings and tracks. This design offers improved reliability, reduced noise, and enhanced structural strength. Compared to traditional V-shaped POM wheels, the new system is more durable and has a longer lifespan, ensuring a smoother and more efficient printing experience.
Open Source
The SV06 ACE is built on an open-source* platform, allowing you to customize the printer according to specific needs. This flexibility ensures a personalized and optimized printing experience, empowering users to tailor features and settings for their unique projects. Enjoy the freedom to innovate and adapt your printing capabilities with the SV06 ACE.
Exceptional Printing Speed
Impressive maximum printing speed of 600mm/s and an acceleration of up to 20,000mm/s². Achieving speeds 12 times faster than the previous SV06 model. Benchy takes only 12m 59s, enhancing overall production efficiency greatly.
Independent Dual Z-Axis Motors
Features independently driven dual Z-axis motors, allowing for precise control of vertical movement. This design simplifies the leveling process, making it easier and more efficient to achieve optimal print results. Experience enhanced stability and improved print quality with this innovative Z-axis control system.
Pressure Advance
Reducing ooze and layer lines significantly, enhancing corner precision for flawless prints.
Resonance Compensation
The intelligent algorithm precisely measures the pressure in the nozzle to ensure smooth and detailed surfaces.
Real-time Monitoring
SV06 ACE is equipped with a camera that allows monitoring of the printing process in real time. Additionally, it enables the capturing of time-lapse footage, which is the ability to closely observe and document the printing process, offering convenience and insight into the printing experience.
Planetary Dual Gear Extruder
Equipped with a planetary dual gear extruder featuring a 1:7.5 gear ratio, ensuring lightweight construction and powerful, consistent output. With a 300℃ high-temperature nozzle, the SV06 ACE supports a wide range of materials: PETG, TPU, PLA, ABS.
Powerful Cooling Fan
Robust 4020 high-speed ball bearing fan that generates strong airflow for rapid cooling of printing materials. This effective cooling solution minimizes warping and enhances layer adhesion, ensuring high-quality prints with precision and consistency.
OTA Updates
The SV06 ACE simplifies the update process with over-the-air (OTA) upgrades, allowing users to easily enhance their printer's functionality. No technical skills are required—just one click is all it takes to install the latest features and improvements. Enjoy a hassle-free experience and keep your printer up to date effortlessly.
One-Button Self-Check
Klipper paired with a 64-bit chip for powerful computing performance. One Click Self-Check ensuring your assembly is correct and all components are functioning properly. Effectively reducing spaghetti monsters.
Real-time Monitoring
SV06 ACE is equipped with a camera that allows monitoring of the printing process in real time. Additionally, it enables the capturing of time-lapse footage, which is the ability to closely observe and document the printing process, offering convenience and insight into the printing experience.
Planetary Dual Gear Extruder
Equipped with a planetary dual gear extruder featuring a 1:7.5 gear ratio, ensuring lightweight construction and powerful, consistent output. With a 300℃ high-temperature nozzle, the SV06 ACE supports a wide range of materials: PETG, TPU, PLA, ABS.
Powerful Cooling Fan
Robust 4020 high-speed ball bearing fan that generates strong airflow for rapid cooling of printing materials. This effective cooling solution minimizes warping and enhances layer adhesion, ensuring high-quality prints with precision and consistency.
OTA Updates
The SV06 ACE simplifies the update process with over-the-air (OTA) upgrades, allowing users to easily enhance their printer's functionality. No technical skills are required—just one click is all it takes to install the latest features and improvements. Enjoy a hassle-free experience and keep your printer up to date effortlessly.
One-Button Self-Check
Klipper paired with a 64-bit chip for powerful computing performance. One Click Self-Check ensuring your assembly is correct and all components are functioning properly. Effectively reducing spaghetti monsters.
Logo list
Featured content
Belt Tensioner
The big belt tensioner with Sovol lightning sign, very cool, and comfortable to adjust the belt tension to achieve smooth printing result.
Dual Z axis
Dual Z-axis screws and stepper motors improve the accuracy and precision of nozzle’s vertical movement with a specified Z-axis accuracy of 0.001mm.
Resume Printing
The resume printing function can make the printer continue printing perfectly after a power outage.
Works Printed By SV06 ACE
Product specification
220*220*250mm³
TF card, USB connection
Standard 0.4mm (Adjustable)
≤ 100℃
≤ 80mm/s
G-Code
≤ 260c (for beginners) ≤ 300c (for experienced people who wanna trying high temp material)
Windows/ Mac/Linux
235mm*235mm
input 115v/230v50/6Hz Output 24v
4010 Dual Ball Bearing
Ceramic Heater
Orcaslicer (Compatible with: Prusaslicer, Cura)
Klipper
4.3" Capacitive Touchscreen
Auto
Pressure Sensor
Yes
2.4 GHz (WPA2 only, WPA3 not supported)
Yes
PLA, PETG, TPU, PVA
12min 59sec (0.25mm layer)
Non
FAQ
How fast can it print?
The printer boasts a maximum speed of 600 mm/s and an acceleration of 20,000 mm/s². In real-world scenarios, it reliably prints at 250–300 mm/s with excellent quality.
Which materials are supported?
Equipped with a 300°C all-metal hotend and a planetary dual-gear direct drive extruder, the SV06 ACE supports a variety of filaments, including: PLA, PETG, TPU, ABS(enclosure recommended). The printer also features a double-sided textured PEI plate for strong bed adhesion.
What is the build volume of the SV06 ACE?
The SV06 ACE offers a build volume of 220 × 220 × 250 mm (8.66" × 8.66" × 9.84"), making it ideal for medium-sized prints and everyday functional parts.
Does it have automatic bed leveling?
Yes, the SV06 ACE includes fully automatic bed leveling using a pressure sensor, eliminating the need for manual adjustments with paper.
Can I monitor prints remotely?
Yes, the printer supports real-time monitoring and control through the Obico app, allowing you to oversee your prints from anywhere via Wi-Fi.
What connectivity options are available?
The SV06 ACE offers multiple connectivity options, including USB, Wi-Fi, and LAN, providing flexibility for various printing setups.
What’s included in the box?
The package contains:
- Partially assembled SV06 ACE printer
- Tool kit for assembly and maintenance
- Spare 0.4mm nozzle
- Side cutters and plastic scraper
- USB drive with OrcaSlicer and sample models
- Sample Test PLA filament
Assembly typically takes about 15 minutes.
Customer Reviews

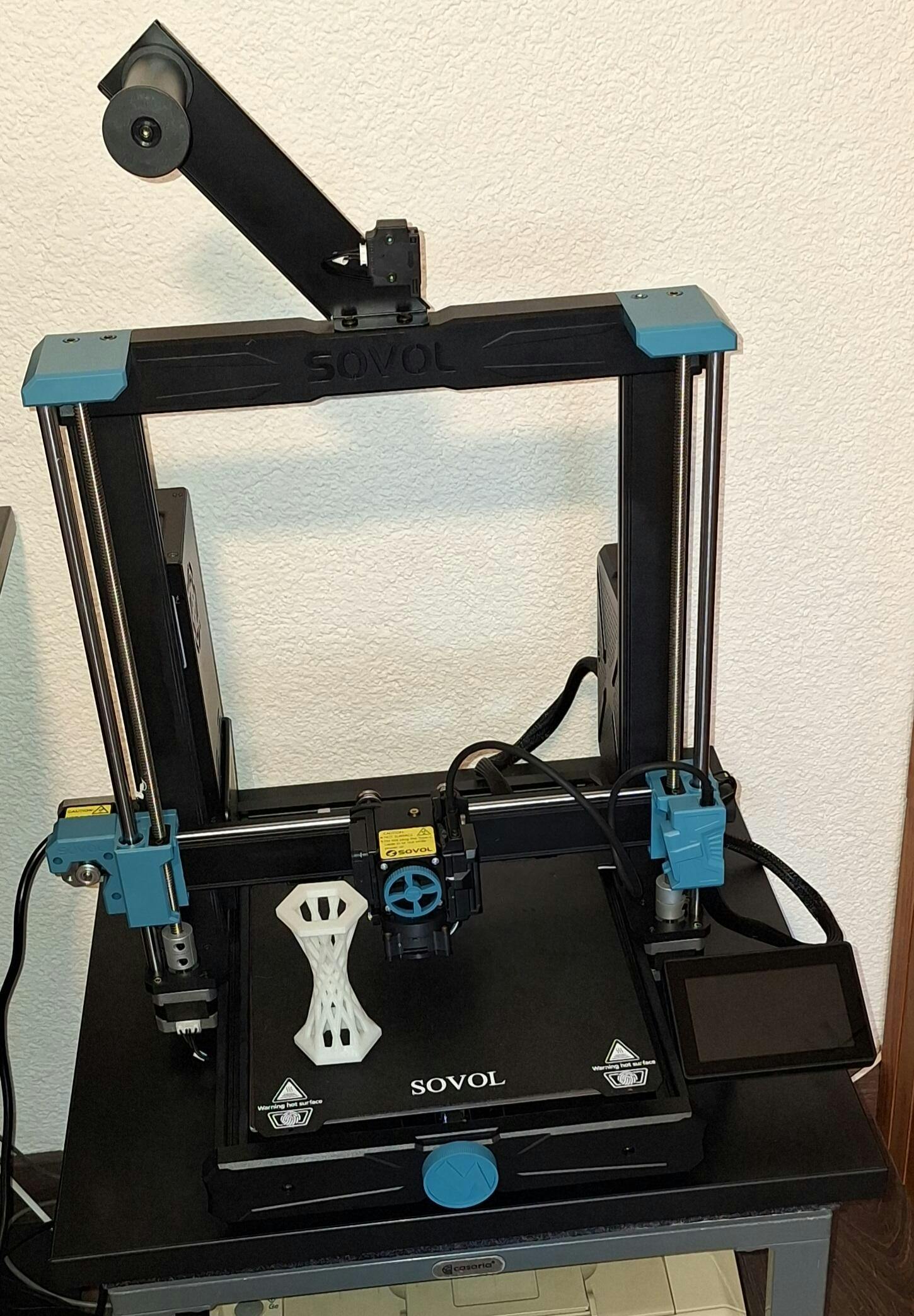

Price good. Delivery fast. Assembly easy. Connection to WLAN easy. Software (Linux Ubuntu). Straightforward.
